日活需求(kafka精准一次性消费) 分别用sparkstreaming和flink实现

指标需求：求出当日新增日活，并通过kibana按照需求做实时展示

实现思路1：sparkstreaming消费kafka数据，使用redis保存kafka偏移量，确保程序意外退出后能从之前的偏移量继续消费，并保存至es做去重。

实现思路2：flink消费kafka数据，使用状态后端(state backend)保存data source中来自kafka的偏移量，确保程序宕机后重启能从之前的偏移位置重新消费。

端到端exactly-once实现：

​ source端：kafka偏移量

​ 内部：sparkingstreaming：redis做去重同时保存偏移量

​ flink：state backend状态后端

​ sink端：es的id不可重复，做幂等性写入

项目局部架构：

sparkingstreaming流程图：

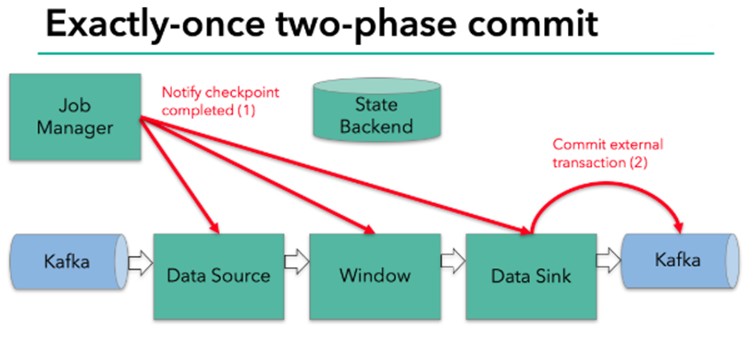

flink端到端状态一致性过程：

demo：

sparkstreaming使用scala实现：

object DauApp {
  def main(args: Array[String]): Unit = {
    //创建配置文件对象 注意：Streaming程序至少不能设置为local，至少需要2个线程
    val conf: SparkConf = new SparkConf().setAppName("Spark01_W").setMaster("local[4]")

    //创建Spark Streaming上下文环境对象O
    val ssc = new StreamingContext(conf,Seconds(3))

    val gmallstartup = "GMALL_STARTUP_0105"
    val daugroup = "DAU_GROUP"

     //使用偏移量工具类从redis获取上一次的kafka偏移量
    val partitionToLong = util.OffsetManager.getOffset(gmallstartup, daugroup)

      //判断是否第一次消费，如果不是则从偏移量开始消费数据流
    var inputStream: InputDStream[ConsumerRecord[String, String]]=null
    if (partitionToLong!=null&&partitionToLong.size>0){
      inputStream = util.MyKafkaUtil.getKafkaStream(gmallstartup, ssc, partitionToLong, daugroup)
    }else{
      inputStream=util.MyKafkaUtil.getKafkaStream(gmallstartup,ssc)
    }

      //得到本批次的偏移量的结束位置，用于更新redis中的偏移量
    var  offsetRanges: Array[OffsetRange] = Array.empty[OffsetRange]
    val  inputGetOffsetDstream: DStream[ConsumerRecord[String, String]] = inputStream.transform { rdd =>
      offsetRanges = rdd.asInstanceOf[HasOffsetRanges].offsetRanges  //driver? executor?  //周期性的执行
      rdd
    }

      //补充日志json时间字段
    val value1 = inputGetOffsetDstream.map(record => {
      val str = record.value()
      val nObject = JSON.parseObject(str)
      val long = nObject.getLong("ts")
      val str1 = new SimpleDateFormat("yyyy-MM-dd HH").format(new Date(long))
      val strings = str1.split(" ")
      nObject.put("dt", strings(0))
      nObject.put("hr", strings(1))
      nObject
    })

      //写入redis以及设置保存时间为24小时，并通过是否写入redis成功判断过滤条数
    val value2 = value1.mapPartitions(iter => {
      val client = util.RedisUtil.getJedisClient
      val buffer = new ListBuffer[JSONObject]()
      val list = iter.toList
      println("过滤前:" + list.size)
      for (jsonObj <- list) {
        val str = jsonObj.getString("dt")
        val str1 = jsonObj.getJSONObject("common").getString("mid")
        val str2 = "dau:" + str
        val long = client.sadd(str2, str1)
        client.expire(str2, 3600 * 24)
        if (long == 1) {
          buffer += jsonObj
        }
      }
      client.close()
      println("过滤后:" + buffer.size)
      list.toIterator
    })


      //写入es
    value2.foreachRDD { rdd => {
      rdd.foreachPartition(rdd => {
        val list = rdd.toList
        val tuples = list.map(jsonObj => {
          val nObject = jsonObj.getJSONObject("common")
          val info = bean.DauInfo(nObject.getString("mid"),
            nObject.getString("uid"),
            nObject.getString("ar"),
            nObject.getString("ch"),
            nObject.getString("vc"),
            jsonObj.getString("dt"),
            jsonObj.getString("hr"),
            "00",
            jsonObj.getLong("ts"))
          (info.mid, info)
        })
        val str = new SimpleDateFormat("yyyy-MM-dd").format(new Date())
        util.MyEsUtil.bulkDoc(tuples, "gmall_dau_info_" + str)
      })
    }
      util.OffsetManager.saveOffset(gmallstartup, daugroup, offsetRanges)
    }

//    value.map(_.value()).print()
    //启动采集器
    ssc.start()
    //默认情况下，上下文对象不能关闭
    //ssc.stop()
    //等待采集结束，终止上下文环境对象
    ssc.awaitTermination()
  }
}

使用到的utils工具类可以去GitHub拉取

flink使用java实现：

package app;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.functions.RuntimeContext;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.elasticsearch.ElasticsearchSinkFunction;
import org.apache.flink.streaming.connectors.elasticsearch.RequestIndexer;
import org.apache.flink.streaming.connectors.elasticsearch.util.RetryRejectedExecutionFailureHandler;
import org.apache.flink.streaming.connectors.elasticsearch6.ElasticsearchSink;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;
import org.apache.flink.streaming.util.serialization.SimpleStringSchema;
import org.apache.http.HttpHost;
import org.elasticsearch.action.index.IndexRequest;
import org.elasticsearch.client.Requests;

import java.text.SimpleDateFormat;
import java.util.*;

/**
 * Copyright(c) 2020-2021 sparrow All Rights Reserved
 * Project: gmall2020-parent
 * Package: app
 * ClassName: DauApp01
 *
 * @author 18729 created on date: 2020/12/8 11:55
 * @version 1.0
 * @since JDK 1.8
 */
public class DauApp01 {
    public static void main(String[] args) throws Exception {
        String kafkaBrokers = "hadoop01:9092";
        String zkBrokers = "hadoop01:2181,hadoop02:2181,hadoop03:2181";
        String topic = "GMALL_STARTUP_0105";
        String groupId = "DAU_GROUP";

        System.out.println("===============》 flink任务开始  ==============》");

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        //设置kafka连接参数
        Properties properties = new Properties();
        properties.setProperty("bootstrap.servers", kafkaBrokers);
        properties.setProperty("zookeeper.connect", zkBrokers);
        properties.setProperty("group.id", groupId);
        //设置时间类型
        env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);
        //设置检查点时间间隔
        env.enableCheckpointing(5000);
        env.setStateBackend( new MemoryStateBackend());
        //创建kafak消费者，获取kafak中的数据
        FlinkKafkaConsumer010<String> kafkaConsumer010 = new FlinkKafkaConsumer010<>(topic, new SimpleStringSchema(), properties);
        DataStreamSource<String> kafkaData = env.addSource(kafkaConsumer010);
        DataStream<String> userData = kafkaData.map(new MapFunction<String, String>() {
            @Override
            public String map(String s) {
                System.out.println(">>>>>>接收topic报文:"+s+"<<<<<");
                return s;
            }
        });

        List<HttpHost> httpHosts = new ArrayList<>();
        httpHosts.add(new HttpHost("hadoop01", 9200, "http"));
        ElasticsearchSink.Builder<String> esSinkBuilder = new ElasticsearchSink.Builder<>(
                httpHosts,
                new ElasticsearchSinkFunction<String>() {
                    public IndexRequest createIndexRequest(String element) {
                        Map<String, Object> json = new HashMap<>();
                        JSONObject jsonObject = JSON.parseObject(element);

                        Long ts = jsonObject.getLong("ts");
                        String format = new SimpleDateFormat("yyyy-MM-dd HH").format(new Date(ts));
                        String[] s = format.split(" ");
                        jsonObject.put("dt",s[0]);
                        jsonObject.put("hr",s[1]);

                        String common = jsonObject.getString("common");
                        JSONObject jsonObject1 = JSON.parseObject(common);

                        json.put("mid",jsonObject1.getString("mid"));
                        json.put("uid",jsonObject1.getString("uid"));
                        json.put("ar",jsonObject1.getString("ar"));
                        json.put("ch",jsonObject1.getString("ch"));
                        json.put("vc",jsonObject1.getString("vc"));
                        json.put("dt",jsonObject.getString("dt"));
                        json.put("hr",jsonObject.getString("hr"));
                        json.put("mi","00");
                        json.put("ts",jsonObject.getLong("ts"));
                        System.out.println("data:"+element);

                        return Requests.indexRequest()
                                .index("gmall_dau_info_" + jsonObject.getString("dt"))
                                .type("_doc")
                                .id(jsonObject1.getString("mid"))
                                .source(json);
                    }
                    @Override
                    public void process(String element, RuntimeContext ctx, RequestIndexer indexer) {
                        indexer.add(createIndexRequest(element));
                    }
                }
        );

        esSinkBuilder.setBulkFlushMaxActions(1);
//        esSinkBuilder.setRestClientFactory(
//                restClientBuilder -> {
//                    restClientBuilder.setDefaultHeaders()
//                }
//        );
        esSinkBuilder.setRestClientFactory(new util.RestClientFactoryImpl());
        esSinkBuilder.setFailureHandler(new RetryRejectedExecutionFailureHandler());

        userData.addSink(esSinkBuilder.build());

        env.execute("flink-task");

    }

}

测试：

将sparkstreaming任务宕机，然后在打开，从redis读取检查点位置继续消费：

将flink任务宕机，然后在打开，能够继续从检查点消费：

通过对比可以发现，使用flink代码比使用sparkstreaming简洁很多，原因在于flink内部有保存状态的状态后端，同时sparkstreaming基于微批次处理，flink基于流式处理在数据处理速度上页更加流畅。
